Bug #16239
open
after updating the server to pfsense 2.8.0 from pfsense 2.7.2, the server freezes tightly on boot
0%
Description
Good afternoon, we use a ThinkSystem SR630 V3 server, it has a QLogic QLE2772 32Gb 2-Port PCIe Fibre Channel Adapter module, which is used for Fibre Channel, and at the stage of loading this driver, the server crashes with a kernel panic.

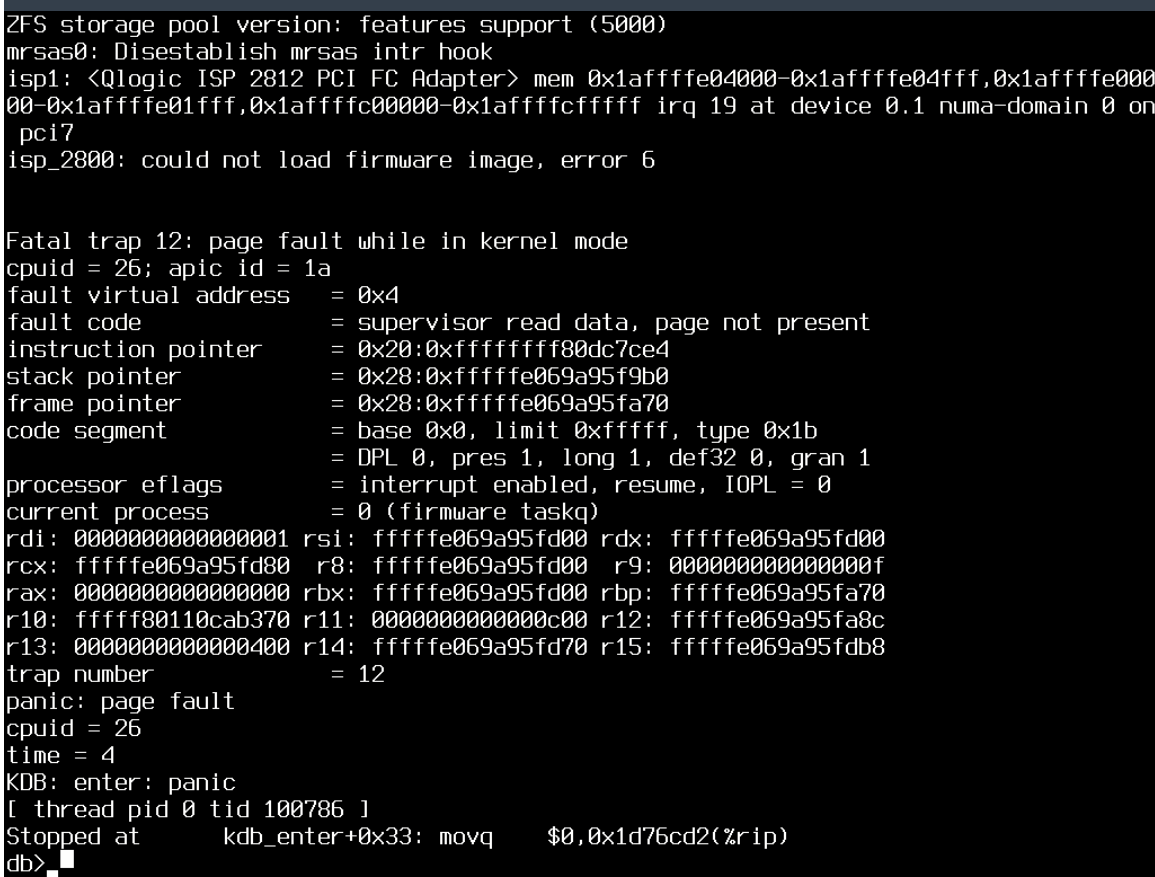

I am attaching screenshots with a description of the problem and the server composition.
hardware setup :
2 * INTEL XEON SILVER 4516Y+
8 * DDR5 64 GB RAM Samsung 80CE04240949500F74
2 * M2 960GB 6Gbps SATA M.2 SSD (SED) ER3-GD960
2 * Power Supply 1100W 03LD899
1 * OnBoard ASPEED AST2600 VGA Display Controller OnBoard N/A
1 * Storage Media Package
1 * QLogic QLE2772 32Gb 2-Port PCIe Fibre Channel Adapter (PCI-E x8)
1 * Broadcom NetXtreme PCIe 1Gb 4-Port RJ45 Ethernet Adapter (Broadcom NetXtreme PCIe 1Gb 4-Port RJ45 Ethernet Adapter 00:3D:00.00)
1 * Intel(R) E810-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter
1 * ThinkSystem M.2 RAID B540i-2i SATA/NVMe Enablement Kit RAID Controller PCI-E 03LD926
1 * System Board : ThinkSystem SR630 V3 7D73CTO1WW JZ008EGY L5HF44B006X 75009B1E7D4F11EF9BC4765D22E06CBC 03GX219
Files
No data to display
