Bug #16726

open

Loader menu does not display the logo properly

Added by Jim Pingle about 2 months ago. Updated 10 days ago.

Status:
Confirmed
Priority:
Very Low
Assignee:
-
Category:
Operating System
Target version:
2.9.0
Start date:
Due date:
% Done:

0%

Estimated time:
Plus Target Version:
26.07
Release Notes:
Default
Affected Version:
Affected Architecture:

Description

There are issues displaying the logo in the loader menu, but the exact behavior varies by system.

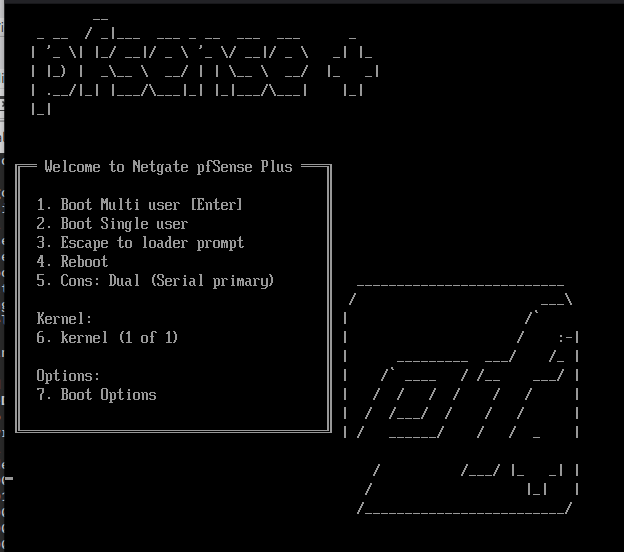

Systems booting EFI are very misaligned with the logo being several lines too low, and selecting a menu option breaks the logo:

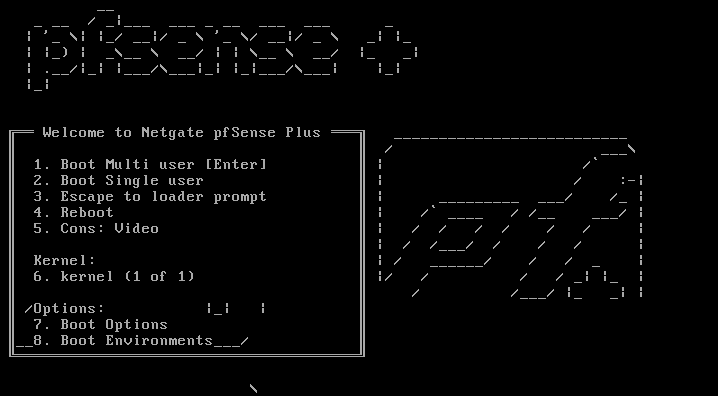

Systems booting legacy/BIOS mangle the bottom of the logo and the menu:

(Note that some parts of the logo are mixed with the "options" section of the menu)

The same behavior happens on CE (2.9.0 snapshots) and Plus (26.03 and 26.07 snapshots), and when booting the installer (1.2 snapshot)

It does not hurt the functionality of the menu and appears to be entirely cosmetic, so not a priority.

Files

Download all files
clipboard-202602271424-hnuap.png (9.77 KB) clipboard-202602271424-hnuap.png Jim Pingle, 02/27/2026 07:24 PM
clipboard-202602271425-pvh3w.png (6.25 KB) clipboard-202602271425-pvh3w.png Jim Pingle, 02/27/2026 07:25 PM
Screenshot_20260404_115755.png (62.3 KB) Screenshot_20260404_115755.png Kris Phillips, 04/04/2026 04:58 PM
Actions
Copy link
 #1

Updated by Kris Phillips 10 days ago

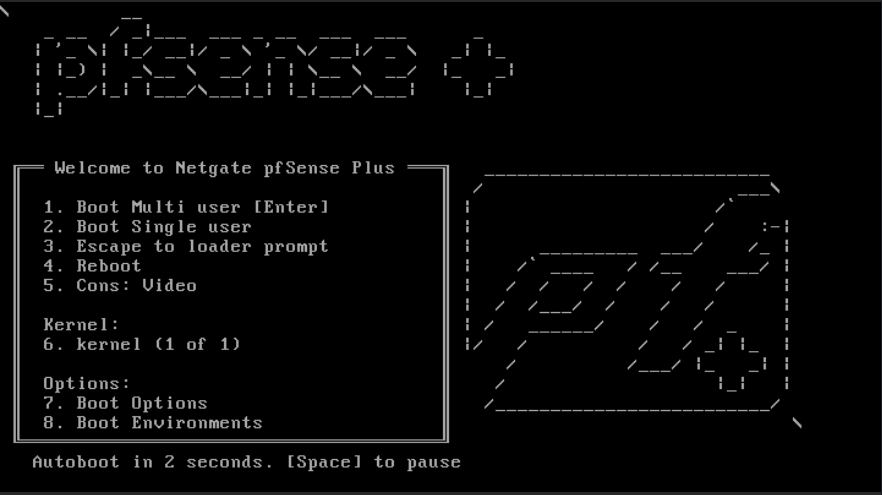

Interestingly, testing this on KVM with BIOS emulation produces a better result, but some ASCII characters are still "flung" into corners.

Marking Confirmed.
