Bug #6567

closed

Dual Wan Gateway Monitor is offline

Added by Jacob Green almost 9 years ago. Updated almost 9 years ago.

Status:
Not a Bug
Priority:
Normal
Assignee:
-
Category:
Gateway Monitoring
Target version:
-
Start date:
06/30/2016
Due date:
% Done:

0%

Estimated time:
Plus Target Version:
Release Notes:
Affected Version:
Affected Architecture:
All

Description

Hello, i am running on pfsense 2.3.1_5_amd64 (latest) and when i switch on dual gateway, the gateways status is offline.

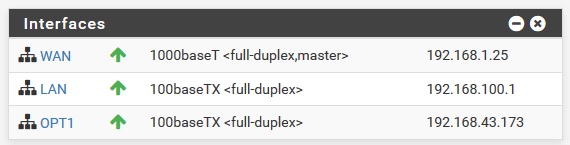

1.Switched on OPT1 interface to (dhcp) mode
2.Created new gateway with monitor ip 8.8.8.8
2nd gateway has monitor ip 8.8.4.4

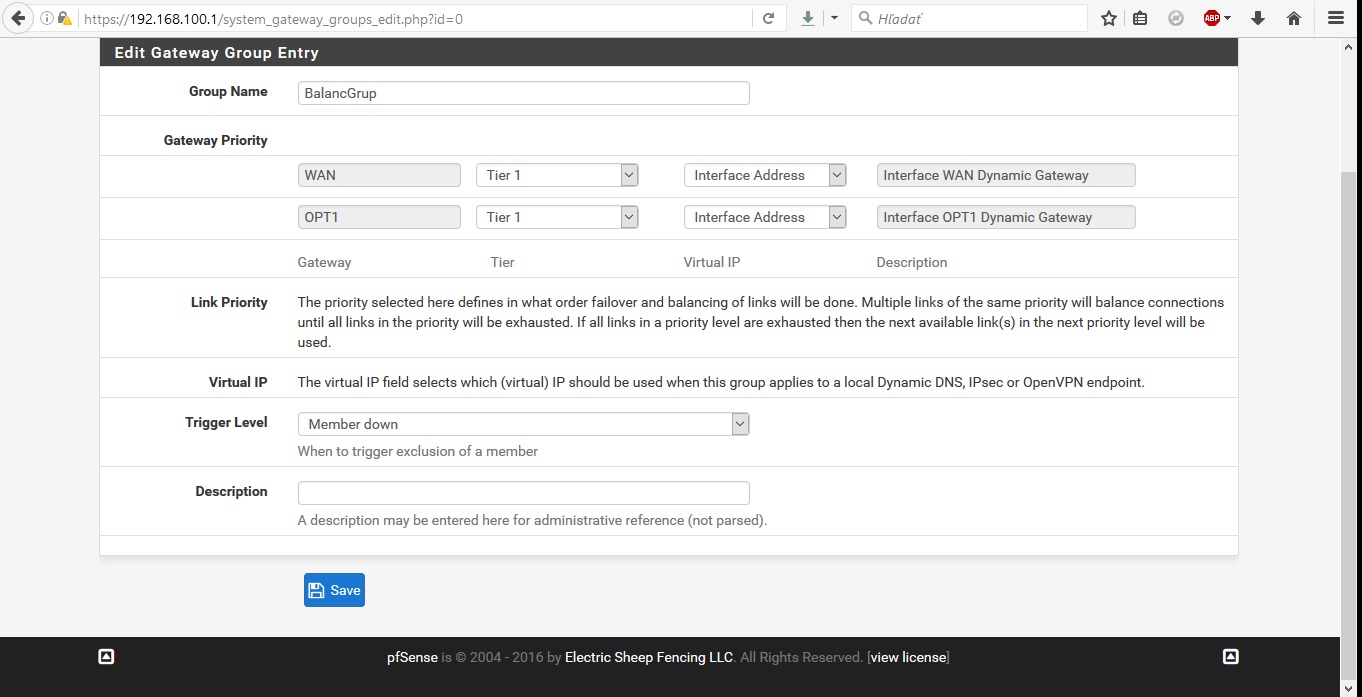

3.Created new gateway group where is Gate1 and Gate2 in Tier1-Tier1
4.Modified LAN Rule - Gateway default to Gateway Group...

When I check in status/gateways the both gateways status is OFFLINE. WHY???

When i did this some process on older version: 2.0.3_amd64 everything is OK!!!, gateways are working and are ONLINE!!!
When i did this some process on some i386 version: 2.3.1_i386 only default WAN gateway is working. OPT1 interface is offline!

When i manualy turn off gateway monitoring the gateways are online and working...

Files

Download all files
Actions
Copy link
 #1

Updated by Chris Buechler almost 9 years ago

  • Status changed from New to Not a Bug
  • Priority changed from Urgent to Normal
  • Affected Version deleted (2.3.1)

probably just need to set the ping payload.
https://forum.pfsense.org/index.php?topic=110043.0

no indication of a bug here, please post to the forum for further assistance.
