Bug #14326
closed
RRD Summary 2.0_2 is not showing any data
0%
Description
Tested on 22.01, 22.05 and 23.01 - all with RRD Summary version 2.0_2

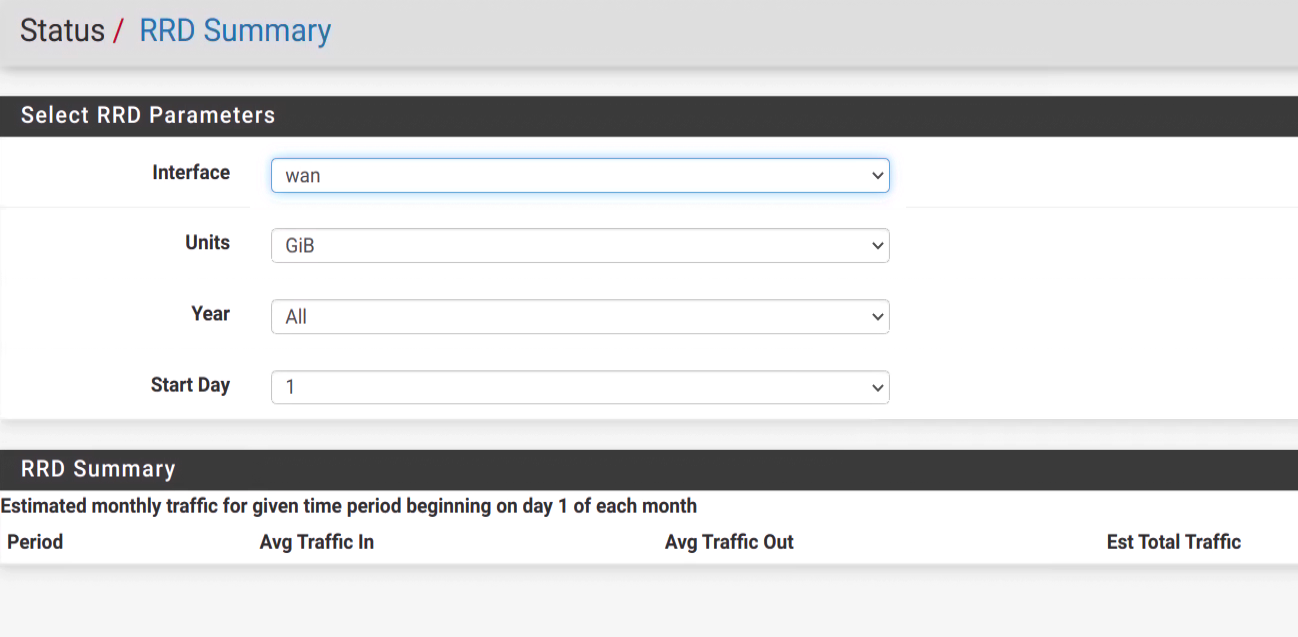

During several weeks I tried but RRD Summary never showed me any data in /Status/RRD Summary page ('RRD_Summary.png').
- I saw traffic in Traffic Graph and /Status/Monitoring
- I saw RRD data when I downloaded backup config.xml with 'Skip RRD data' option unchecked.

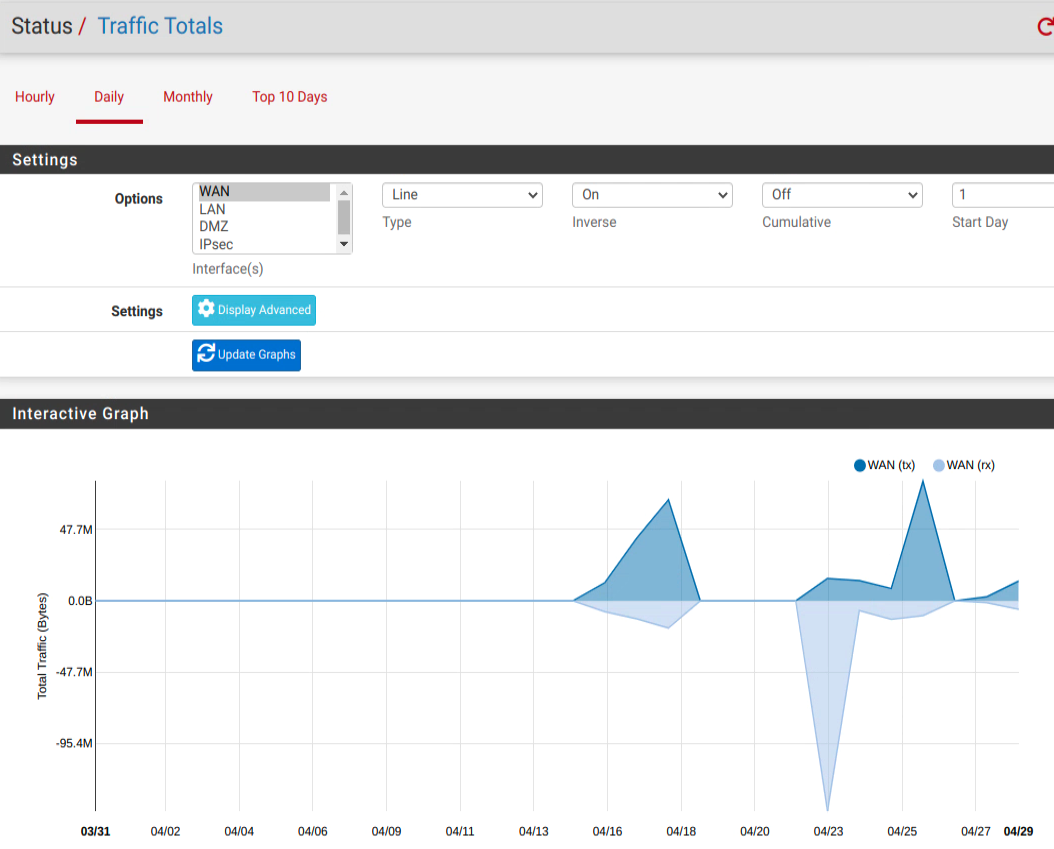

- I saw traffic with Status_Traffic_Totals package installed ('Status_Traffic_Totals.png')
- and I saw output if I run '/usr/local/bin/rrdtool fetch /var/db/rrd/wan-traffic.rrd AVERAGE' command ('rrdtool_output.txt')
Files
| Status_Traffic_Totals.png (159 KB) Status_Traffic_Totals.png | |||
| rrdtool_output.txt (19.1 KB) rrdtool_output.txt | |||
| RRD_Summary.png (182 KB) RRD_Summary.png |
Updated by Jim Pingle about 1 year ago
- Project changed from pfSense to pfSense Packages
- Category changed from RRD Graphs to RRD Summary
- Release Notes deleted (
Default)
Updated by Azamat Khakimyanov about 1 year ago
- Subject changed from RRD Summary to RRD Summary 2.0_2 is not showing any data
Updated by Jim Pingle 11 months ago
- Status changed from New to Rejected
I can't reproduce this here but given that the interface name you show is printed in lower case I'm guessing it was maybe related to #13739
There is a different bug preventing the package from printing data on 23.05 but the symptoms don't line up. On that one it prints dates but with all zeroes.
Upgrade to 23.05 and try again there after #14418 is resolved.
