possibly related: https://redmine.pfsense.org/issues/16784

I have been experiencing this on many firewalls I manage.
Built some scripts that so far seem to alleviate this issue as a workaround.
currently testing these scripts across device reboots to see if the fix holds or eventually device fails to connect back to tailscale.
Ill post results in the next few days.

SO far the scripts work and none of the firewalls I manage via tailscale have dropped off like they used to.
The conclusion seems to be the same as you have already expressed that the residual key is to blame across reboots.
Once the key id removed from the equation, everything seems to work. I would also say if there was a button or procedure to clear out the generated key after joining the tailnet this should solve the issue.
Better yet, maybe there is a clear button that actually copies the key to a safe location / then if the pfsense endpoint admin decides to leave the tailnet they can click the logout and clean button that would retrieve they key used to then expire the connection.
Just thoughts here...
Cheers.

1. Health check:
2. - You are logged out. The last login error was: invalid key: API key does not exist
3. - Unable to connect to the Tailscale coordination server to synchronize the state of your tailnet. Peer reachability might degrade over time.

unexpected state: NoState

It seems as you had predicted the presence of the key post reboots may be the cause.
Happy to test anything you might want on a few of my firewalls I have.

Paul Mavrovic wrote in #note-3:

Maybe there is a clear button that actually copies the key to a safe location / then if the pfsense endpoint admin decides to leave the tailnet they can click the logout and clean button that would retrieve they key used to then expire the connection.

Thanks for all your researching into the ticket. It's been nice seeing your updates. I gotta admit I'm not an expert in this, so I'm going to ask you for some clarification here.

1. As far as I have observed, a reusable key makes it so this specific issue is not occurring.

2. A non-reusable key is what causes the problem due to the fact that this package is trying to reuse it when upping the interface.

3. So why would there be an advantage in saving the key?

4. When expiring the connection, is that something being done on the tailscale admin portal?

5. If so, why is the key helpful or necessary for that?

Just hoping you can educate me a bit, because I have a pretty small tailnet and haven't had to do too much outside of what I believe to be the basics.

Thanks!

I am by no means an expert at this either.. However I am an avid Tailscale user that just started to dig into the problem.

SO as far as I know YES to point 1 you made by using a reusable key that does not expire supposedly the issue should not exist.
I have tried testing this on a bunch of firewalls and so long as the firewall does not reboot, Tailscale seems to rejoin properly. In some cases, I have had the firewall reboot and rejoin with no issue. However after about a week or 2, almost every firewall connecting to the tailnet required me to generate a new key to rejoin the tailnet and in my machines tab I would have to delete the old one, and re-tag the new instance and set it as non expiring.

After some reading of many posts and diving into the docs at Tailscale I decided to leverage ChatGpt for a little help to gain insight into the issue.
It seems that if one would manually remove the key from 2 config files on Pfsense, the issue would be resolved.

I tested this on my own firewall and it seems to work.

Here is the excerpt from the comments section of the script I created that describes the 2 files.. and the key removal.

1) Any line containing:

1. <preauthkey>...</preauthkey>

1. from:

1. /cf/conf/config.xml

#

1. 2) Any line matching:

1. ^pfsense_tailscaled_authkey=

1. from:

1. /usr/local/etc/rc.conf.d/pfsense_tailscaled

#

I can make the script available if you wish for your own use.. I just dont want to jump ahead of any DEVS at PFsense to suggest any permanent fix.
Like I said I am NOT an expert at Tailscale nor at modifying any PFsense code.

but if you backup those 2 files and remove the authkey, it seems to fix the issue.

That is why I suggested to possibly just backup the key in case it was needed for some reason again, but I don't think there is a real need to do so.
Im happy to take this conversation to direct email with you if you wish.

What I forgot to finish explaining is that it seems that after a few reboots, somehow PFsense thinks it needs to present the AuthKey again to the tailnet on connection and Tailscale then says that the initial Pre-Auth key has already been used and therefore the connection is NOT allowed.
By removing the "memory" of the key from the config files across reboots, it seems to fix the issue.

R S wrote in #note-6:

Paul Mavrovic wrote in #note-3:

Maybe there is a clear button that actually copies the key to a safe location / then if the pfsense endpoint admin decides to leave the tailnet they can click the logout and clean button that would retrieve they key used to then expire the connection.

Thanks for all your researching into the ticket. It's been nice seeing your updates. I gotta admit I'm not an expert in this, so I'm going to ask you for some clarification here.

1. As far as I have observed, a reusable key makes it so this specific issue is not occurring.

Yes as far as I have seen if the key is re-usable the issue should go away. However as a security conscious person I would rather use one time keys to initiate the connection and then just set the connection to no expire in the use case of having access to the remote firewall.

2. A non-reusable key is what causes the problem due to the fact that this package is trying to reuse it when upping the interface.

Yes It appears that when the firewall comes up the key gets re-populated and tries to re-auth with Tailscale, triggering the denial due to re-use of a one time key.

3. So why would there be an advantage in saving the key?

I only suggested saving the Key just in case there was a use case, however

4. When expiring the connection, is that something being done on the tailscale admin portal?

YES one can expire the connection from the tailscale machines interface.

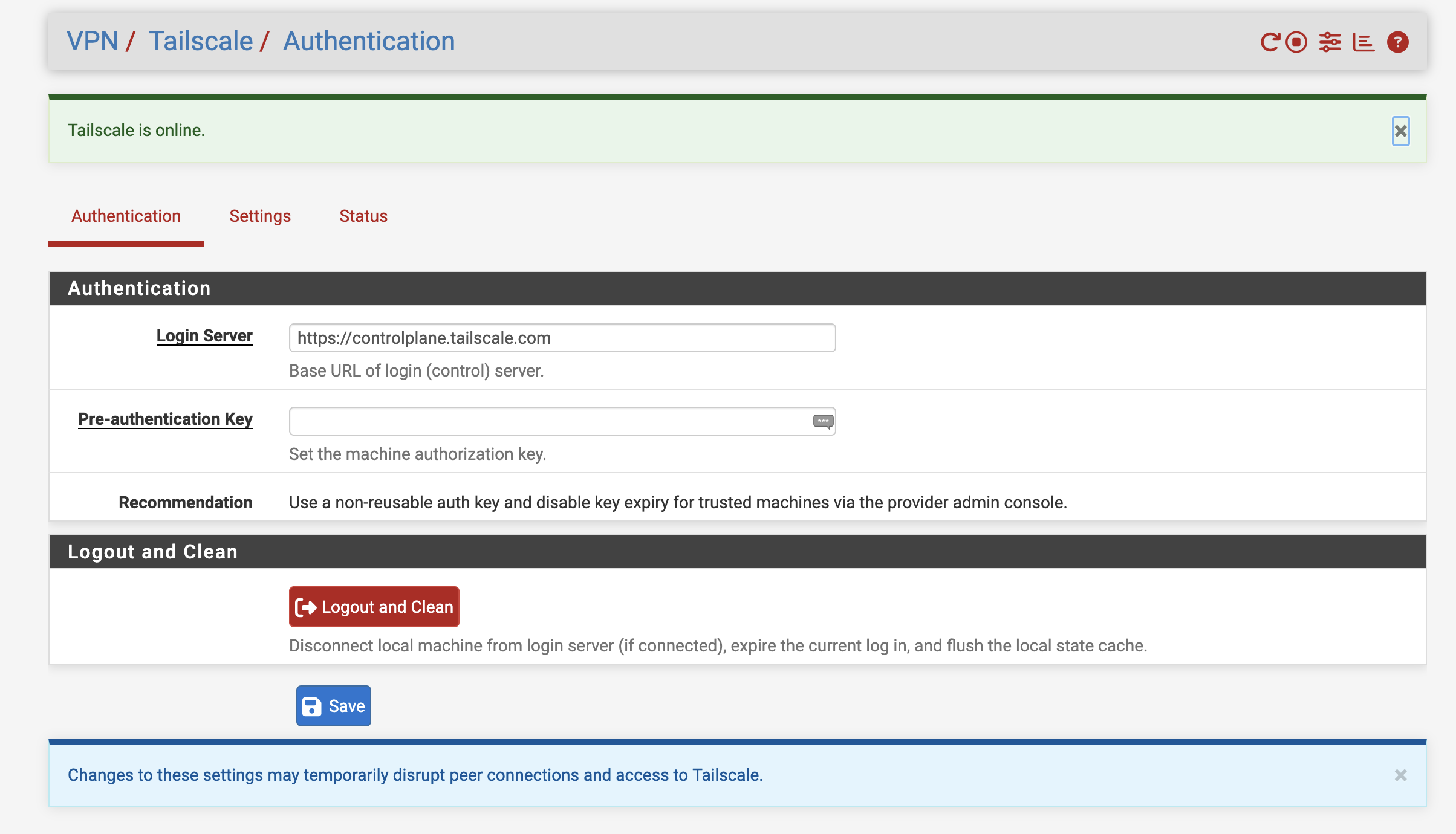

However it might also be nice if there was a way to have a button in the fireweall interface to "Disconnect and and Delete from Tailnet"

5. If so, why is the key helpful or necessary for that?

I was just thinking that maybe a remote endpoint may want to "disconnect" from a Tailnet. However in practice, one can just remove the tailscale package and ahev it completely clean the config files to completely disconnect.

Just hoping you can educate me a bit, because I have a pretty small tailnet and haven't had to do too much outside of what I believe to be the basics.

Thanks!

Ive answered your questions to the best of my ability.

Just a general comment...
SO far I have used the modifications I have described on about 6 firewalls. NONE of them has dropped from Tailscale as of yet.
I have 2 other firewalls that I am leaving alone as a control group... SO far both of them dropped off after about a week. Granted, this is mainly due to a remote reboot by the customer.

• On a firewall that has Tailscale, I would also have an instance of OpenVPN or other means of access so that just in case Tailscale drops once can still get into the firewall.
• I have not seen any side effects so for on any of the firewalls I have made these modifications to.
• After any new firmware update or update to the tailscale package for PFsense, Im pretty sure one will need to create these modifications once again to keep things working until a more permanent fix is introduced.

Ill post any updates to this if I see any changes take place.

Just want to add another update.
Once of my "Control Firewalls" without the Auth key cleanup patch fell off the Tailnet after a reboot due to all the reasons we have already identified.

As a test I wanted to see IF I just simply clear out the offending AuthKey, would the firewall re-connect WITHOUT needing to generate a new Auth Key.

I ran the cleanup script on the firewall and tailscale automatically re-connected to the network.
This is good to know because essentially this confirms that the overall error IS the re-populating one time use auth key and that so long as the endpoint is set to NOT expire, the device will reconnect...

I hope this helps.

SO just another update...
After applying the patch to several of the firewalls I have in the field that are subject to reboots due to a number of circumstances, none of them has disconnected from the tailnet as of yet.

Prior to this this, these firewalls would always need to be re-keyed to stay connected about every 1-2 weeks.

If requested I can make the script I am using available for others to test.

Another update:
I have patched all my managed firewalls with the script and none of them have disconnected at all since.
Granted this patch is a temp fix until the package gets updated, its seems to work.
Only issue I see is if a new Tailscale PKG becomes available, one would have to run the script again to remove the key unless it gets fixed.
