Feature #13340

open

Option to change QinQ ethertype to Service VLAN Tag

Added by Marcos M about 1 year ago. Updated 11 months ago.

Status:
New
Priority:
Normal
Assignee:
-
Category:
Operating System
Target version:
-
Start date:
Due date:
% Done:

0%

Estimated time:
Plus Target Version:
Release Notes:
Default

Description

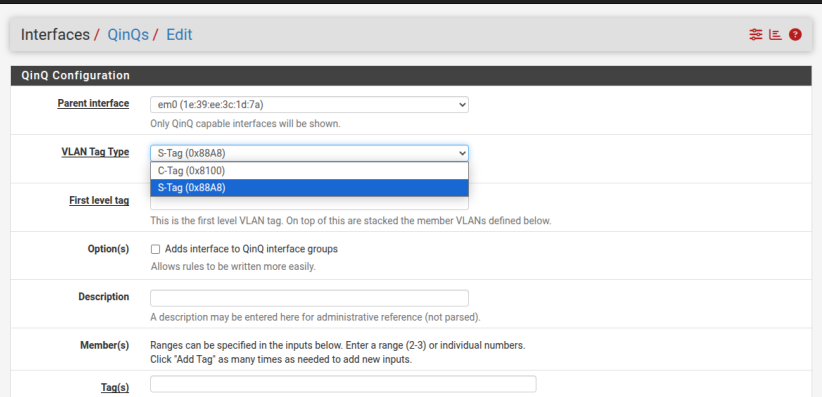

Currently, pfSense uses C-Tags (ethertype 0x8100) for QinQ interfaces. Ideally, it should keep C-Tags on existing configuration but default to and provide the option to use S-Tags (ethertype 0x88A8).

https://www.iana.org/assignments/ieee-802-numbers/ieee-802-numbers.xhtml

Actions
Copy link
 #1

Updated by Steve Wheeler 11 months ago

In 23.01/2.7 the QinQ is handled by if_vlan directly and not netgraph. It now uses s-tags by default.

Since that's a change from the previous config it may fail for some setups making a setting there more important.

It is trivial to set at the command line though:

[23.01-DEVELOPMENT][admin@7100.stevew.lan]/root: ifconfig lagg0.4080 vlanproto 802.1Q
[23.01-DEVELOPMENT][admin@7100.stevew.lan]/root: ifconfig lagg0.4080
lagg0.4080: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
    options=4600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6,NOMAP>
    ether 00:08:a2:0e:a5:93
    inet6 fe80::208:a2ff:fe0e:a593%lagg0.4080 prefixlen 64 scopeid 0x17
    groups: vlan
    vlan: 4080 vlanproto: 802.1q vlanpcp: 0 parent interface: lagg0
    media: Ethernet autoselect
    status: active
    nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>

Actions
Copy link
 #2

Updated by Marcos M 11 months ago

  • Description updated (diff)
