Bug #4451

open

Status DHCP Leases shows double entries for static entries without IP address

Added by Phillip Davis about 9 years ago. Updated almost 2 years ago.

Status:
New
Priority:
Low
Assignee:
Category:
DHCP (IPv4)
Target version:
-
Start date:
02/19/2015
Due date:
% Done:

0%

Estimated time:
Plus Target Version:
Release Notes:
Affected Version:
All
Affected Architecture:

Description

Forum: https://forum.pfsense.org/index.php?topic=89043.0
Add a "Static Mapped" DHCP entry for some MAC address but do not specify an IP address. This can be useful when you want to provide some special DHCP parameters to a client but are happy for it to get an IP address from the pool.
Connect the client. It has a dynamic IP from the pool.
Status->DHCP Leases - the client MAC is shown in 2 rows of the table - one row as the dynamic data, one row as the "static" entry without an IP address.
1) The dynamic data has the "+" button displayed at the end - that is not appropriate because there is already a static entry. The edit button that is on the end of the static row is the appropriate one.
2) Could not display the dynamic row, and put the current dynamic IP from the pool into the IP address box on the static row. That would keep the information available and remove confusion from having 2 rows. Need to think what to do about the Lease Type column - the 2 rows have "active" and "static" in them. In a sense this entry is both at once.

Some useful screenshots are on that forum post.


Files

Actions #1

Updated by Phillip Davis about 9 years ago

Forum post is actually: https://forum.pfsense.org/index.php?topic=89072.0
and I do not see any buttons that allow me to edit the body of an issue I posted, or any updates of mine.

Actions #2

Updated by Kris Phillips over 2 years ago

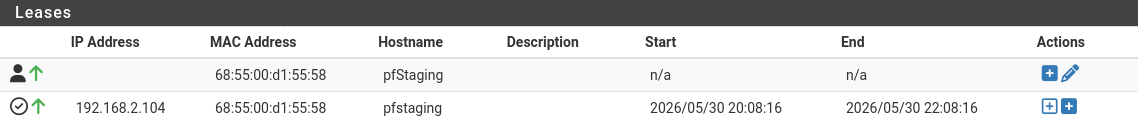

This is still the case today in pfSense Plus 21.05.2 and likely in pfSense CE 2.5.2. See attached screenshot.

Actions #3

Updated by Kris Phillips almost 2 years ago

This is still present in 22.01 and 22.05-BETA build from May 20th.
