I believe I have the same issue when running 2.8

It looks like the limiter masks are applied after NAT when using a gateway group.

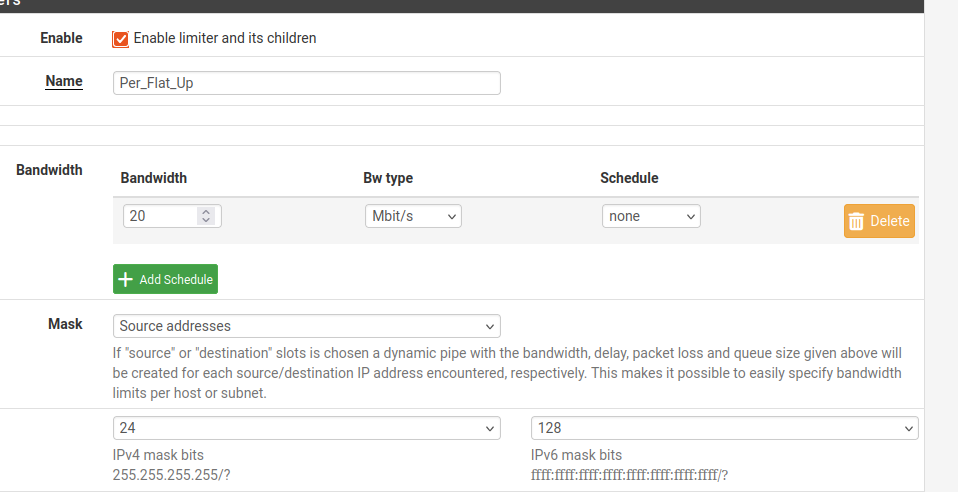

If I set up a limiter with a source mask (e.g. /24) and apply it the 'in' direction of a LAN rule that also has a gateway group, the limiter it creates is for the WAN IP of the connection that packet goes out of, NOT based on the IP of the device on the LAN. If I remove the gateway group from the rule, it creates limiters as I'd expect

Also described here
https://forum.netgate.com/topic/197993/limiter-source-mask-now-after-nat-when-using-gateway-groups-2-8-change

I am able to replicate this on 25.11 as well using limiters. In the example below, limiter 0001 is for upload (50Mb) and 00002 is for download (100Mb) - 10.0.5.1 is the gateway.

Without route-to:

##########
# Limiters
##########
Limiters:
00001:  50.000 Mbit/s    0 ms burst 0
q65537  50 sl. 0 flows (1 buckets) sched 1 weight 1 lmax 0 pri 0 droptail
 sched 65537 type FIFO flags 0x1 256 buckets 1 active
    mask:  0x00 0xffffffff/0x0000 -> 0x00000000/0x0000
BKT Prot ___Source IP/port____ ____Dest. IP/port____ Tot_pkt/bytes Pkt/Byte Drp
100 ip        10.0.50.50/0             0.0.0.0/0        3      180  0    0   0
00002: 100.000 Mbit/s    0 ms burst 0
q65538  50 sl. 0 flows (1 buckets) sched 2 weight 1 lmax 0 pri 0 droptail
 sched 65538 type FIFO flags 0x1 256 buckets 1 active
    mask:  0x00 0x00000000/0x0000 -> 0xffffffff/0x0000
 50 ip           0.0.0.0/0          10.0.50.50/0        3      180  0    0   0

Schedulers:
00001:  50.000 Mbit/s    0 ms burst 0
 sched 1 type WF2Q+ flags 0x1 256 buckets 0 active
    mask:  0x00 0xffffffff/0x0000 -> 0x00000000/0x0000
00002: 100.000 Mbit/s    0 ms burst 0
 sched 2 type WF2Q+ flags 0x1 256 buckets 0 active
    mask:  0x00 0x00000000/0x0000 -> 0xffffffff/0x0000

########
# States
########
vmx1 icmp 9.9.9.9:8 <- 10.0.50.50:1       0:0
   age 00:00:02, expires in 00:00:09, 2:2 pkts, 120:120 bytes, anchor 1, rule 84, dummynet pipe (1 2)
vmx0 icmp 10.0.5.99:30653 (10.0.50.50:1) -> 9.9.9.9:8       0:0
   age 00:00:02, expires in 00:00:09, 2:2 pkts, 120:120 bytes, anchor 2, rule 78, allow-opts

#######
# Rules
#######
@84 pass in quick on vmx1 inet from any to 9.9.9.9 flags S/SA keep state (if-bound) label "id=1756220433" label "tags=user_rule" label "descr=Test" ridentifier 1756220433 dnpipe(1, 2)
@78 pass out route-to (vmx0 10.0.5.1) inet from 10.0.5.99 to ! 10.0.5.0/24 flags S/SA keep state (if-bound) allow-opts label "descr=let out anything from firewall host itself" ridentifier 1000003711

With route-to:

##########
# Limiters
##########
Limiters:
00001:  50.000 Mbit/s    0 ms burst 0
q65537  50 sl. 0 flows (1 buckets) sched 1 weight 1 lmax 0 pri 0 droptail
 sched 65537 type FIFO flags 0x1 256 buckets 1 active
    mask:  0x00 0xffffffff/0x0000 -> 0x00000000/0x0000
BKT Prot ___Source IP/port____ ____Dest. IP/port____ Tot_pkt/bytes Pkt/Byte Drp
198 ip         10.0.5.99/0             0.0.0.0/0       29     1740  0    0   0
00002: 100.000 Mbit/s    0 ms burst 0
q65538  50 sl. 0 flows (1 buckets) sched 2 weight 1 lmax 0 pri 0 droptail
 sched 65538 type FIFO flags 0x1 256 buckets 1 active
    mask:  0x00 0x00000000/0x0000 -> 0xffffffff/0x0000
 50 ip           0.0.0.0/0          10.0.50.50/0       29     1740  0    0   0

Schedulers:
00001:  50.000 Mbit/s    0 ms burst 0
 sched 1 type WF2Q+ flags 0x1 256 buckets 0 active
    mask:  0x00 0xffffffff/0x0000 -> 0x00000000/0x0000
00002: 100.000 Mbit/s    0 ms burst 0
 sched 2 type WF2Q+ flags 0x1 256 buckets 0 active
    mask:  0x00 0x00000000/0x0000 -> 0xffffffff/0x0000

########
# States
########
vmx1 icmp 9.9.9.9:8 <- 10.0.50.50:1       0:0
   age 00:00:02, expires in 00:00:10, 3:3 pkts, 180:180 bytes, anchor 1, rule 84, dummynet pipe (1 2)
vmx0 icmp 10.0.5.99:64595 (10.0.50.50:1) -> 9.9.9.9:8       0:0
   age 00:00:02, expires in 00:00:10, 3:3 pkts, 180:180 bytes, anchor 2, rule 78, allow-opts, dummynet pipe (1 2)

#######
# Rules
#######
@84 pass in quick on vmx1 route-to (vmx0 10.0.5.1) inet from any to 9.9.9.9 flags S/SA keep state (if-bound) label "id=1756220433" label "gw=WAN_STATIC" label "tags=user_rule" label "descr=Test" ridentifier 1756220433 dnpipe(1, 2)
@78 pass out route-to (vmx0 10.0.5.1) inet from 10.0.5.99 to ! 10.0.5.0/24 flags S/SA keep state (if-bound) allow-opts label "descr=let out anything from firewall host itself" ridentifier 1000003711

The limiter configuration used (/tmp/rules.limiter) is:

pipe 1 config  bw 50Mb queue 25 delay 1 mask src-ip6 /128 src-ip 0xffffffff droptail
sched 1 config pipe 1 mask src-ip6 /128 src-ip 0xffffffff type wf2q+

pipe 2 config  bw 100Mb queue 25 delay 1 mask dst-ip6 /128 dst-ip 0xffffffff droptail
sched 2 config pipe 2 mask dst-ip6 /128 dst-ip 0xffffffff type wf2q+
